Shear Walls: The Key to Structural Integrity in Any Build & Weather Condition

When it comes to structural framing, ensuring the strength and stability of your building is crucial. One of the most important elements in maintaining structural integrity is the use of shear walls. Framing contractors install shear walls to help the building resist lateral forces, such as wind, earthquakes, snow loads, and contribute to the overall structural framing of the building. In this blog, we’ll explore the benefits of shear walls in construction, how to choose the best thickness for shear walls, what materials work best for different projects, and tips for framing contractors to follow for shear wall installation.

What Are Shear Walls and Their Benefits?

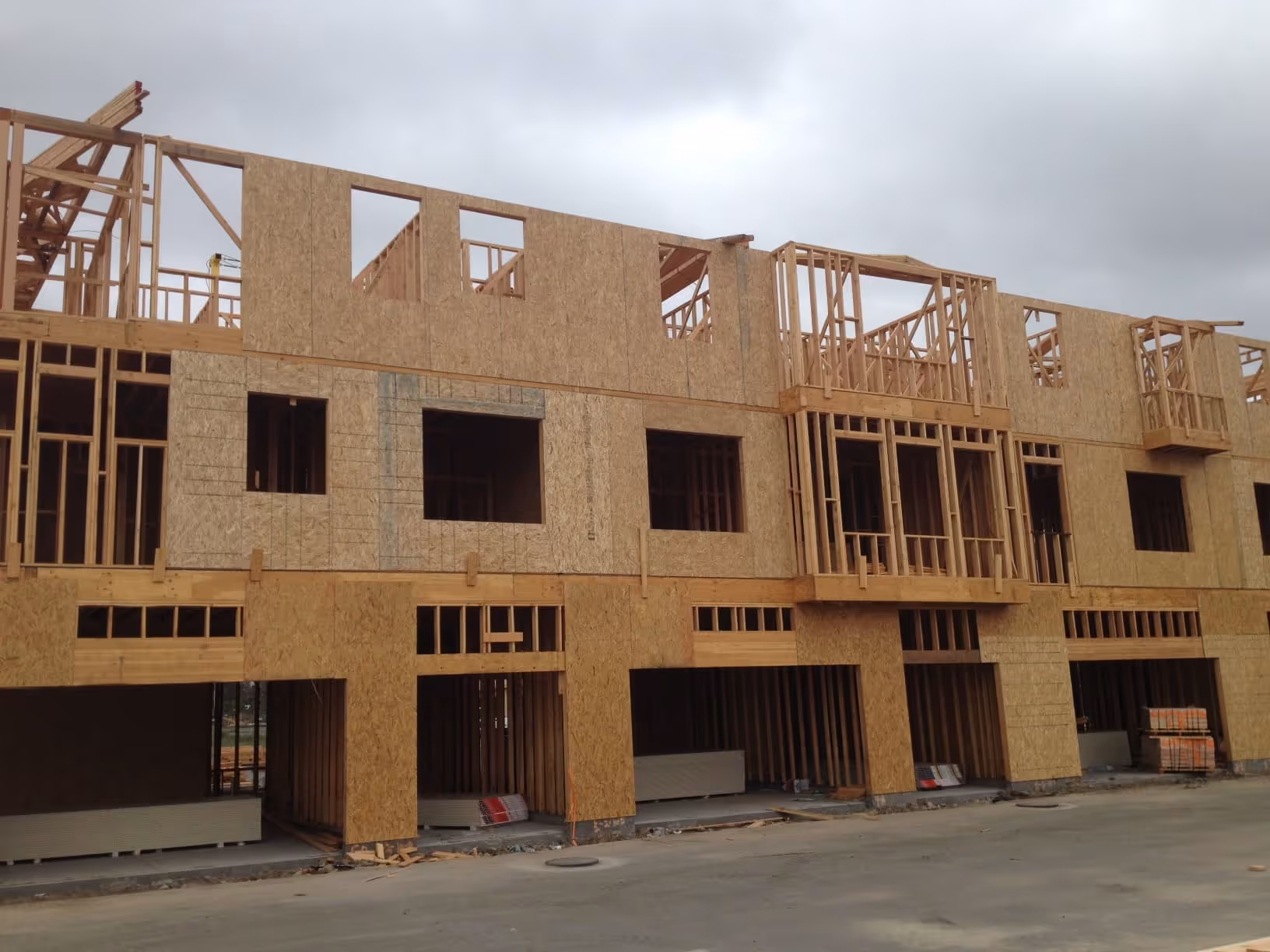

Shear walls are essential in providing lateral strength to a structure. They are typically made of materials like OSB for shear walls or plywood for shear walls and are used to resist horizontal forces such as wind, earthquakes, and snow loads. These walls are crucial for structural stability of any build, offering the necessary reinforcement to keep buildings stable.

The benefits of shear walls in construction go beyond just strength. They ensure that the building remains square during construction and provide resistance to twisting or racking that may occur in harsh weather conditions such as high winds or earthquake-prone areas. Whether you’re dealing with residential or commercial projects, shear walls can enhance the structural framing and overall stability of any building.

Shear wall benefits extend to the increased durability of your structure under various weather conditions. For example, in areas with high winds or earthquakes, shear wall installation helps distribute forces evenly, reducing the risk of damage or collapse. The benefits of using these shear walls can significantly improve the overall resilience of your structure.

OSB vs Plywood for Shear Walls

When selecting materials for shear walls, the choice often comes down to OSB for shear walls or plywood for shear walls. Both materials offer different advantages, but the right choice largely depends on your specific project requirements.

• OSB is typically a more affordable option and is widely used for shear walls in commercial and residential construction. It provides excellent strength and performance, especially in high-wind or earthquake-prone areas.

• Plywood offers superior durability and moisture resistance, making it a preferred option for floors and roofs in addition to shear wall installation.

Both materials are effective for ensuring shear wall benefits, but understanding the differences between OSB and plywood for shear walls will help you make the best decision for your project.

Best Thickness for Shear Walls

The best thickness for shear walls depends on the specific needs of your building. For example, the thicker the shear wall, the better it will resist forces from wind, earthquakes, and snow loads. Here’s a quick guide to the common thicknesses:

• 1/2-inch OSB or plywood is typically used for framing in areas with moderate exposure to forces.

• 5/8-inch panels can be ideal for structures that will face higher loads or stresses, such as roofs or walls in areas with frequent windstorms.

• 3/4-inch panels are commonly used for shear wall installation in high-risk areas, offering the highest resistance to lateral forces.

Selecting the best thickness for shear walls is key to ensuring your building meets both structural framing requirements and local building codes.

Shear Wall Nailing Patterns

Proper nailing is crucial when installing shear walls. To maximize their strength and effectiveness, it's important your framing contractor follows the correct shear wall nailing patterns for both the edges and the field. A typical pattern used in shear wall installation is 4/12 nailing, where nails are spaced 4 inches apart along the edges of the panels and 12 inches apart in the field (the central portion of the panel).

This nailing pattern ensures that the shear walls are securely attached to the framing, reducing the risk of panel movement under stress. Using a 3x post for adjoining edges helps prevent wood splitting, ensuring that the walls remain tightly fastened. Make sure you select a framing contractor who sources high-quality materials for construction that are resistant to splitting and add to the structural support of your build.

Shear Wall Installation Tips

Here are some important shear wall installation tips for any framing contractor to ensure your walls are properly installed and perform at their best:

• Ensure proper alignment and spacing: Shear wall panels should be correctly aligned with the framing, leaving a 1/8-inch gap between panels to allow for expansion and prevent buckling. Misalignment or improper spacing can compromise the structural framing and reduce the effectiveness of the shear wall.

• Follow the correct nailing pattern: Always check the shear schedule for the required shear wall nailing pattern, such as 4/12 or 6/12, and ensure all nails penetrate directly into studs for maximum strength. Proper nailing is essential for the shear wall benefits of increased stability and resistance to lateral forces like wind and earthquakes.

• Verify code compliance: Shear wall requirements vary by region, so it’s crucial to follow local building codes for proper shear panel installation. Adhering to the correct thickness, nailing pattern, and spacing ensures your structure is compliant, safe, and built to last.

A Necessity for Structural Support

Shear walls are essential for providing stability and strength to a building. Whether you’re working with OSB for shear walls or plywood for shear walls, choosing the right material and thickness is key to ensuring your structure can withstand wind, earthquakes, and other lateral forces. By following the right shear wall installation practices, including shear wall benefits, proper nailing, and shear wall installation tips, you can create a building that is both safe and durable.

For expert structural framing and shear wall installation, trust a framing contractor like Franke Construction Inc. We ensure all of our projects meet the latest building codes and provide lasting structural integrity for every job. Contact us today to learn how we can help with your next building project.
