What Does Home Framing Entail? A Detailed Overview

Framing is the backbone of any home construction project. It forms the structural skeleton that supports everything from the walls and floors to the roof. Understanding the framing process can help homeowners appreciate the intricacies involved in building a strong and durable home. This guide provides a detailed overview of what framing entails, covering all essential steps from layout to roof framing.

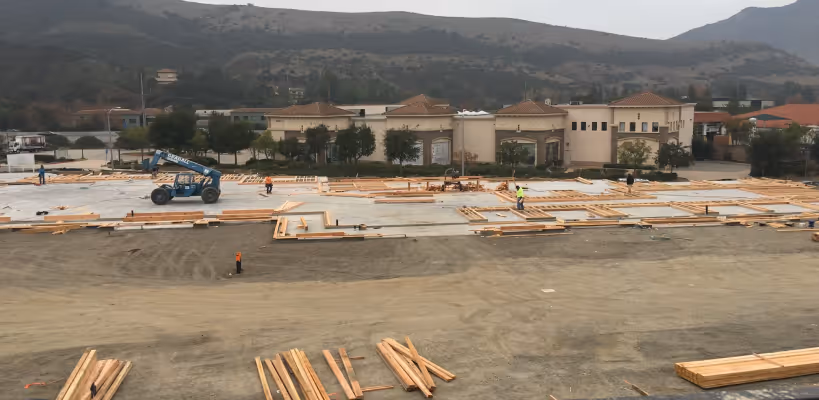

Layout: The Blueprint of Your Home

Setting the Foundation

The framing process begins with a detailed layout. This crucial step involves marking the precise locations where the walls, doors, and windows will be placed, serving as the blueprint for the entire framing process. Accurate layout ensures that everything is aligned according to the architectural plans.

Plating the mud sill is an important part of this step. The mud sill, a treated piece of lumber, is anchored to the foundation using bolts, providing a solid base for the framing. Proper detailing during this phase ensures that the framing is securely anchored and precisely aligned, setting the stage for a stable and well-constructed home.

Tools and Techniques

Using tools like chalk lines, measuring tapes, and laser levels, framers create an accurate map on the foundation. This step is crucial as it sets the stage for all subsequent framing activities. Any errors in the layout can lead to misaligned walls and structural issues.

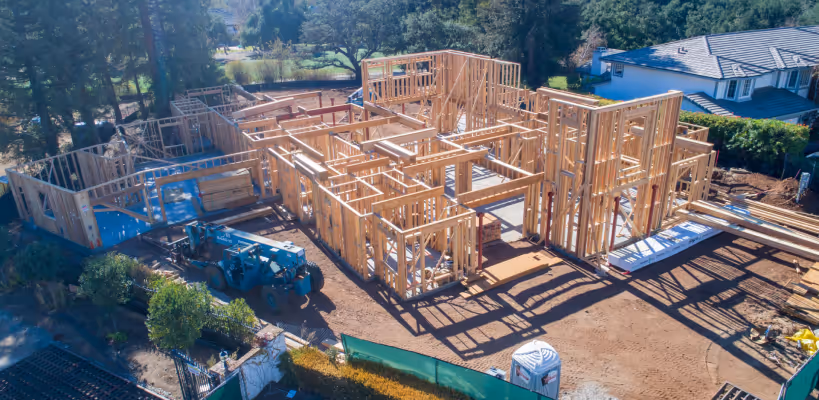

Framing Walls: Building the Vertical Structure

Studs, Plates, Headers, and Cripples

Once the layout is complete, the next step is framing the walls. This involves constructing the vertical structures using studs, headers, cripples, and plates. Studs are the vertical beams that run from the floor to the ceiling. Headers are horizontal beams placed above door and window openings to support the weight above. Cripples are shorter vertical beams that fill the space between the top of the opening and the header, as well as between the bottom of the opening and the sill plate. Plates are horizontal beams that connect the studs at the top and bottom, with the top plate capping the wall and the bottom plate anchoring it to the floor.

Assembling Wall Sections

Wall sections are typically assembled on the ground and then raised into position. This method allows for more precise assembly and easier installation of additional elements like door and window openings. After raising the walls, they are nailed and secured in place using temporary bracing.

Securing and Sheathing

Once the wall frames are in place, they are secured to the foundation and each other. Sheathing, which is typically made of plywood or oriented strand board (OSB), is then attached to the exterior side of the wall frames. This adds rigidity and provides a surface for attaching exterior finishes.

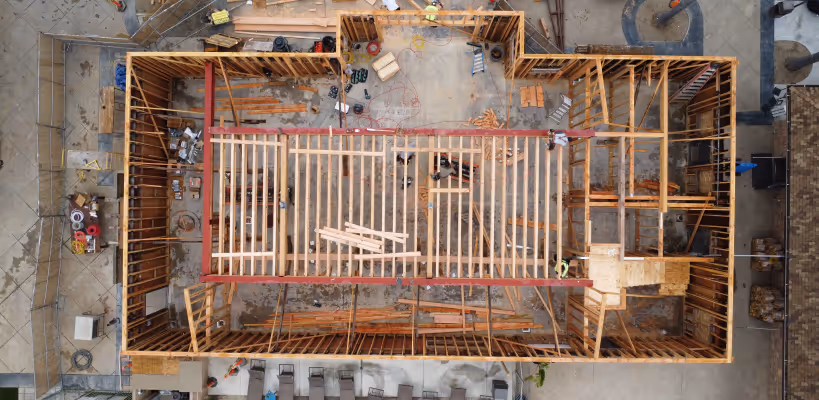

Floor Joists: Creating the Horizontal Framework

Installing Joists

With the walls framed and sheathed, the next step is installing the floor joists. Joists are horizontal beams that support the floors of the house. They are spaced evenly across the span of the floor and secured to the wall plates.

Subflooring

After the joists are installed, subflooring is added. This typically involves laying plywood or OSB sheets over the joists to create a stable and level surface for the finished flooring. Proper installation of subflooring is crucial to prevent squeaks and ensure a solid feel underfoot.

Shear Walls: Reinforcing Structural Integrity

Purpose of Shear Walls

Shear walls are essential for reinforcing the structural integrity of a home. They are designed to resist lateral forces such as wind and earthquakes, preventing the house from swaying or collapsing under such stresses.

Construction and Placement

Shear walls are typically constructed using reinforced materials and are strategically placed throughout the structure. They are often integrated into exterior walls but can also be part of interior walls in multi-story homes.

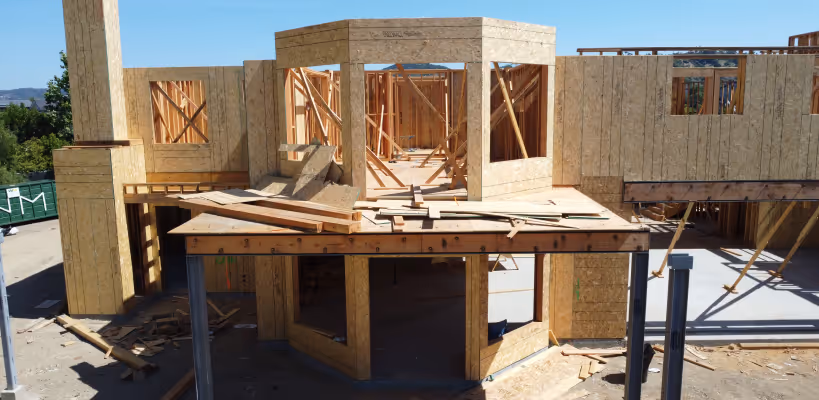

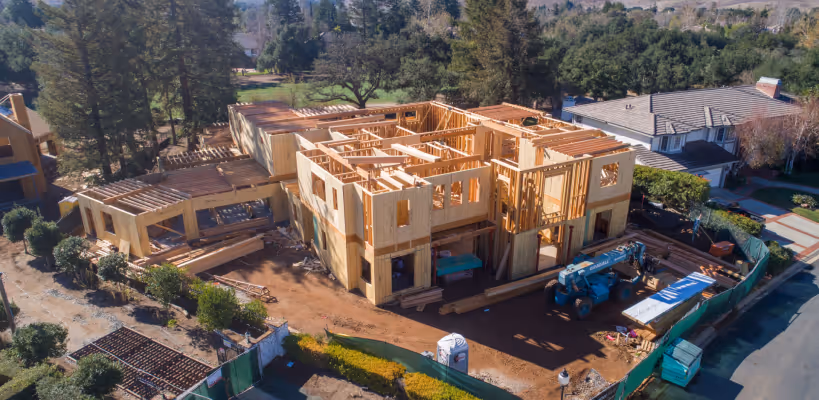

Additional Story Framing: Building Upwards

Multi-Story Construction

For homes with multiple stories, the framing process is repeated for each additional floor. This involves adding another set of floor joists and subflooring, followed by framing the walls and shear walls for the upper levels.

Structural Considerations

Additional story framing requires careful planning and reinforcement to ensure the stability of the entire structure. This often involves using stronger materials and additional bracing to support the extra weight and height.

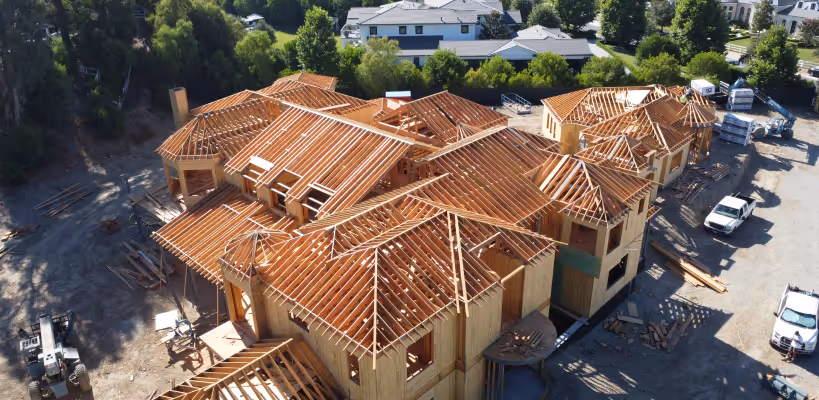

Roof Framing: Capping the Structure

Rafters and Trusses

The final step in the framing process is constructing the roof. This involves installing rafters or trusses, which are the inclined beams that support the roof. Rafters are cut and installed by the framer, while trusses are prefabricated triangular units that provide more strength and flexibility.

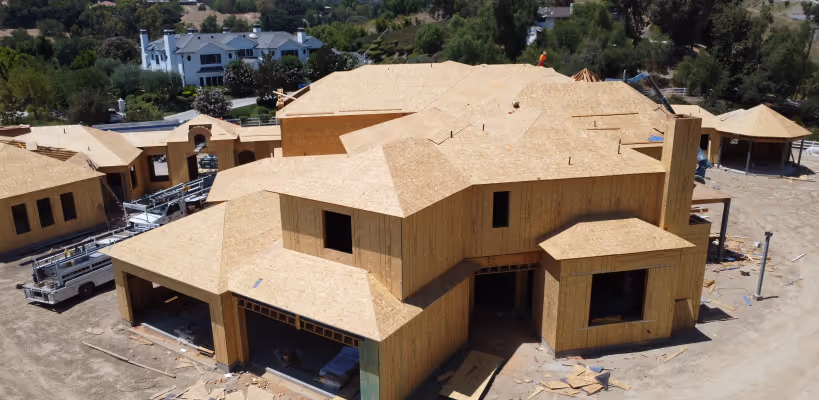

Sheathing and Underlayment

Once the rafters or trusses are in place, roof sheathing is added. This typically involves attaching plywood or OSB sheets to the roof frame. An underlayment, such as roofing felt, is then applied over the sheathing to provide a moisture barrier and prepare the surface for the final roofing material.

The Importance of Proper Framing

Structural Integrity

Proper framing is essential for ensuring the structural integrity of a home. Each component, from the layout to the roof framing, plays a critical role in supporting the structure and maintaining its stability. Poor framing can lead to a host of problems, including structural weaknesses, misaligned walls, and even collapse.

Energy Efficiency

Well-executed framing also contributes to the energy efficiency of a home. Properly framed walls and roofs provide a solid foundation for insulation, helping to maintain a consistent indoor temperature and reducing energy costs.

Overall Build Quality

The quality of the framing directly impacts the overall build quality of the home. A well-framed house provides a sturdy and level foundation for all subsequent construction phases, ensuring that finishes like drywall, flooring, and roofing can be installed correctly and look their best.

Problems Arising from Poor Framing

Extended Timelines

One of the most immediate problems resulting from poor framing is extended construction timelines. Incorrect framing can lead to delays as errors need to be corrected, increasing labor costs and disrupting the overall schedule.

Structural Issues

Poor framing can cause significant structural issues, such as uneven or weak walls, sagging floors, and misaligned doors and windows. These problems compromise the safety of the home and can lead to costly repairs.

Energy Inefficiency

Improperly framed homes often have gaps and spaces that allow air to escape, making it difficult to maintain a comfortable indoor environment and increasing energy consumption. This results in higher energy bills and a less environmentally friendly home.

Ensuring Quality Framing

Hire Experienced Professionals

Ensuring quality framing begins with hiring skilled and reputable professionals "like Franke Construction.”. Experienced framers comprehend the complexities of the task and can perform the work with precision and attention to detail. Seek out contractors with a proven history of excellence and positive client feedback.

Use Quality Materials

Using high-quality materials is essential for proper framing. Inferior materials can lead to structural weaknesses and other problems down the line. Investing in quality lumber, nails, and other materials ensures a stronger and more durable frame.

Regular Inspections

Regular inspections throughout the construction process can help catch any framing issues early on. Inspections should be carried out by qualified professionals who can identify and address any problems before they escalate, ensuring that the framing is done correctly and meets all building codes and standards.

Conclusion

Proper framing is the cornerstone of a well-built home. It ensures structural integrity, enhances energy efficiency, and sets the stage for high-quality finishes. By understanding the framing process and its importance, homeowners can make informed decisions and ensure that their homes are built to last. At Franke Construction Inc., we specialize in providing premier framing services that guarantee the durability and quality of your home. Contact us today to learn more about how we can help with your construction project.
